Laser cleaning machine
Product details

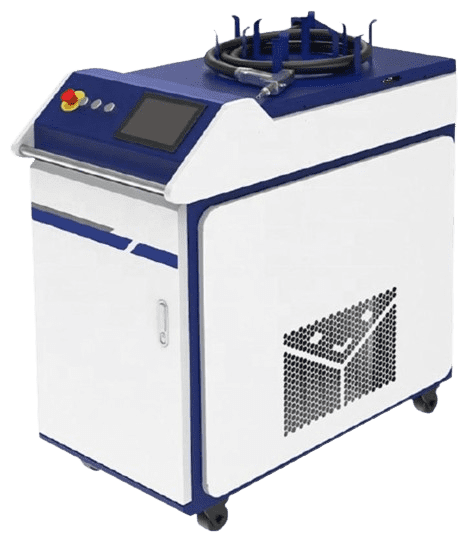

SPRING Laser cleaning machine SPR-3000
The laser cleaning machine is a machine that uses a high-energy laser beam to remove unnecessary materials such as rust and oil stains from the surface of the equipment. Our laser cleaning machine uses high-frequency high-energy laser pulses to irradiate the surface of the workpiece, and the coating layer can instantly absorb the focused laser energy, causing the oil stains, rust spots, or coatings on the surface to evaporate or peel off, effectively removing surface attachments or coatings at high speed, A laser pulse with a short operating time will not harm the metal substrate under appropriate parameters.
Advantage
The machine has the following advantages:
- Stable output power, good beam quality. Strong adaptability, plane three-dimensional cylinder can be.
- Environmentally friendly, no chemicals and cleaning fluid, humanised control system, simple and easy to operate.
- Multiple languages can be switched, suitable for different countries.
What are the uses of laser cleaning machines?

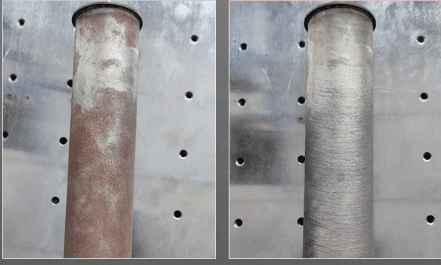

- Metal surface rust removal

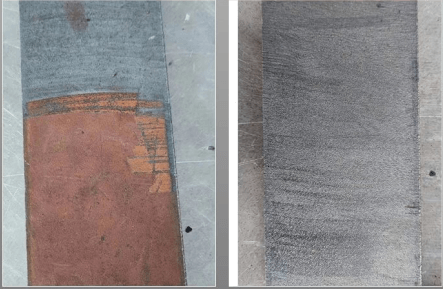

- Surface paint removal and stripping treatment
- Cleaning of surface oil, stains, and dirt
- Clear surface coating and coating

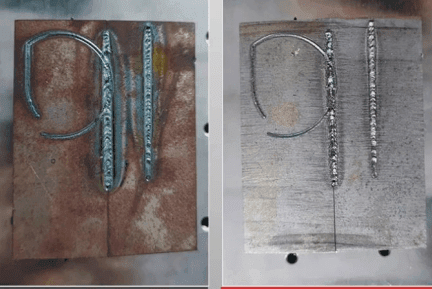

- Pre treatment of welding and spraying surfaces
- Removal of dust and attachments on the surface of stone statues
- Cleaning of rubber mold residue
- Antiques and Cultural Relics Cleaning
Parameter
Model | SPRC-3000 |
Laser power | 3000W |
wavelength | 1064nm±5nm |
Laser mode | Single mode |
Photoelectric conversion efficiency | 30% |
Working type | continuous |
Fiber Length | 10m |
Cooling type | Water cooling |
Cooling machine model | 1.5PBuilt-in chiller |
Cooling water temperature | 20-25℃ |
Power supply | AC220±10%，50Hz |
Ambient Temperature | 10~35℃ |
Working environment humidity | ≤95% |
Power regulation range | 5-95% |
Power instability | ≤2% |
Transmission fiber core diameter | 25um-50um |
Cleaning format | 0-150mm/（0-300mm） |
