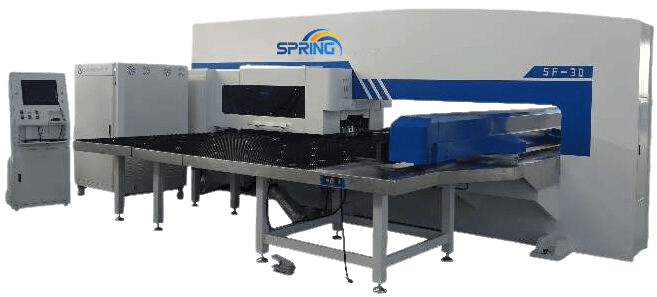

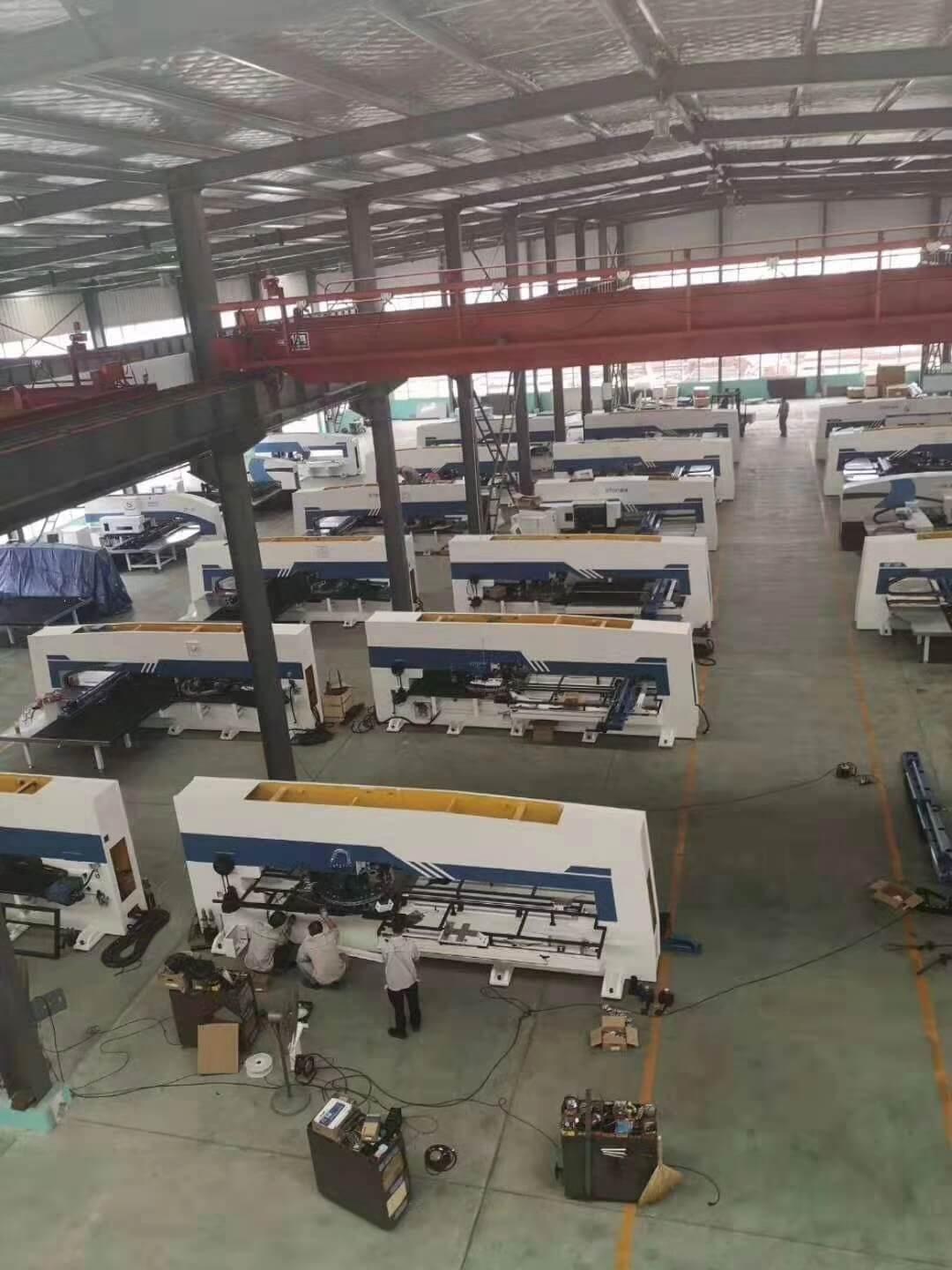

CNC Turret Punch SF-30
All-electric servo CNC turret punch press SF-30 adopts unique design of high-strength body, stable performance. The main punching power adopts all-electric servo motor, high efficiency and energy saving. It can realise a variety of processes such as punching, cutting, forming, rib rolling, lettering and so on. Mechanical transmission and electrical, pneumatic components are imported brands.
1 Unique design of high strength body, stable performance.
2 Main stamping power adopts all-electric servo motor, high efficiency and energy saving.
3 Can realise a variety of processes such as punching and cutting, forming, rib rolling, lettering and so on.
4 Mechanical transmission and electrical, pneumatic components are imported brands.
Parameter
|
No. |
Name |
Parameter |
Unit |
Remark |
|
1 |
Punching force |
300（30） |
KN（T） |
1500Nm |
|
2 |
Frame structure |
“O” type closed servo drive |
mm |
|
|
3 |
Once positioning Maximum processing plate size |
X axis 2500 |
mm |
X axis secondary positioning |
|
Yaxis 2000 |
mm |
Machinable 5000mm |
||
|
4 |
Processing maximum sheet thickness |
6 |
mm |
|
|
5 |
Maximum diameter of one punching |
Φ88.9 |
mm |
Customized |
|
6 |
Maximum punching frequency |
1800 |
hpm |
|
|
7 |
Maximum punching times |
800 |
hpm |
|
|
8 |
Control axis |
5（X、Y、Z、T、C） |
||
|
9 |
Mold form |
Long guide 85 series international standard mold |
||
|
10 |
Turret station distribution |
16A, 11B, 3C, 2D (Including rotating station 1B, 1C) |
||
|
11 |
Repositioning cylinder |
2 |
||
|
12 |
Number of clamps |
3 |
||
|
13 |
Feeding speed |
X axis 80 |
m/min |
|
|
Y axis 80 |
m/min |
|||
|
14 |
Workbench structure |
Brush/universal steel ball composite table |
Stainless edge |
|
|
15 |
Maximum turret speed |
40 |
rpm |
|
|
16 |
Precision |
±0.1 |
mm |
|
|
17 |
Maximum load capacity |
150 |
kg |
|
|
18 |
Comprehensive power |
6 |
kw |
|
|
19 |
Air pressure |
0.55 |
Mpa |
|
|
20 |
power supply |
380±5% |
V |
|
|
21 |
Dimensions |
6500x5200x2100 |
mm |
Six advantages of CNC turret punching compared with ordinary punching machine
- Compared with ordinary punching machine CNC punching machine processing precision, with stable processing quality;
- CNC punching machine processing width: It can complete 1.5m * 5m processing width;
- Can carry out the linkage of multiple coordinates, can process complex shaped parts can be done shear forming;
- CNC turret punch processing parts change, generally only need to change the CNC programme, can save production preparation time;
- CNC turret punch itself, high precision, rigidity, can choose a favourable processing dosage, high productivity;
- Compared with ordinary punching machine CNC turret punch automation degree is high, can reduce labour intensity;
- CNC turret punch operation is simple, with some basic computer knowledge training 2-3 days can start operating, so will slowly replace the ordinary punching machine.
